- Stock: 10
- Model: Cisco WS-C3560X-48PF-S
- Dimensions: 49.50cm x44.50cm x4.50cm
- SKU: 74IN26N0JF
- XSIN: 74IN26N0JF
- Condition: Seller Refurbished
Sponsored
Have a question?
Overview

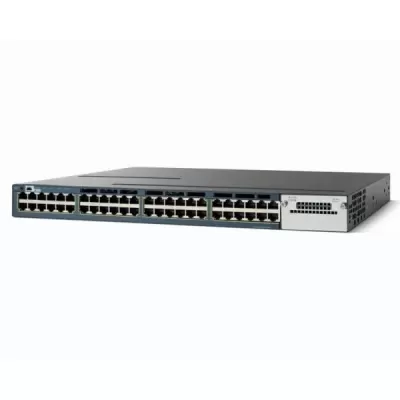

Cisco Catalyst WS-C3560X-48PF-S is 48 Gigabit Ethernet POE+
ports standalone switch in IP base feature set with no stacking option. Four
optional network modules and license-base software feature provide flexibility,
scalability and feature extensibility in order to reduce the cost of
development of business needs. WSC3560X-48PF-S support IEEE802.3at standard to
allocate up to 30W power on each port in total 800W POE budget to power up IP
phones, wireless and video; customers can specify the power setting on
individual port in command line setting. IP base feature set provide up to
1005-Vlans and basic layer 3 routing features, advanced security features and
management features.
WS-C3560X-48PF-S is designed for enterprise
access/aggregation layer switching; however, customers can transparently
upgrade the software feature to by purchasing IP services license to activity
advanced layer 3 routing capability to fully support BGP, EIGRP, OSFP routing.
WS-C3560X-48PF-S switch comes with one default power supply module, customers
can purchase additional power supply module insert into power supply bay 2 in
order to power redundancy.
WS-C3560X-48PF-S
Cisco Catalyst 3560-X Series Switch
48 * 10/100/1000 Ethernet PoE+
ports
Four optional uplink network
modules with GE or 10GE ports
800W POE power budget with up to 30W per port Dual redundant, modular power supplies and fans baseline Layer 3 routing features
WS-C3560X-48PF-S Specification
| WS-C3560X-48PF-S data sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3560X-48PF-S |
| Product Type | Switch - 48 ports - L3 - Managed |
| Form Factor | Rack mountable - 1U |
| Switch Ports | 48 x 10/100/1000 Ethernet Ports Ethernet Ports |
| Power Over Ethernet (PoE) | Yes |
| Routing Protocol | OSPF stub, Eigrp Stub, PIM stub, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity Slots | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE USB : 1 x 4 PIN USB Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply | |
| Power Device | Power supply - redundant - plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 49.5 cm |
| Height | 4.5 cm |
| Weight | 7.5 kg |
| Rack Mounting Kit | Optional |
| MTBF | 149,594 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Base |
